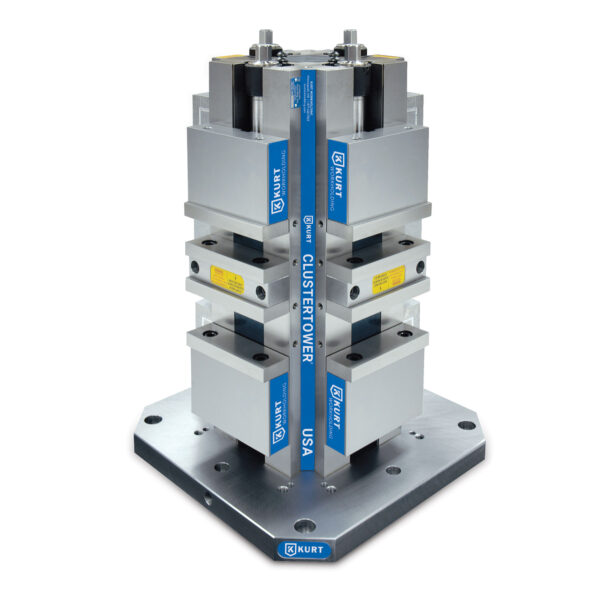

6-inch Kurt Cluster Tower with 400 mm Base and Hard Jaws – CTHDL644J-SD
Part No. CTHDL644J-SD
Original price was: $12,051.00.$8,435.70Current price is: $8,435.70.
Tower w/400 mm Base, w/English Hard Jaws, 6″
Out of stock
Want to be notified when this product is back in stock?
Description
Description
They have some minor porosity on the face.
Resources
Resources

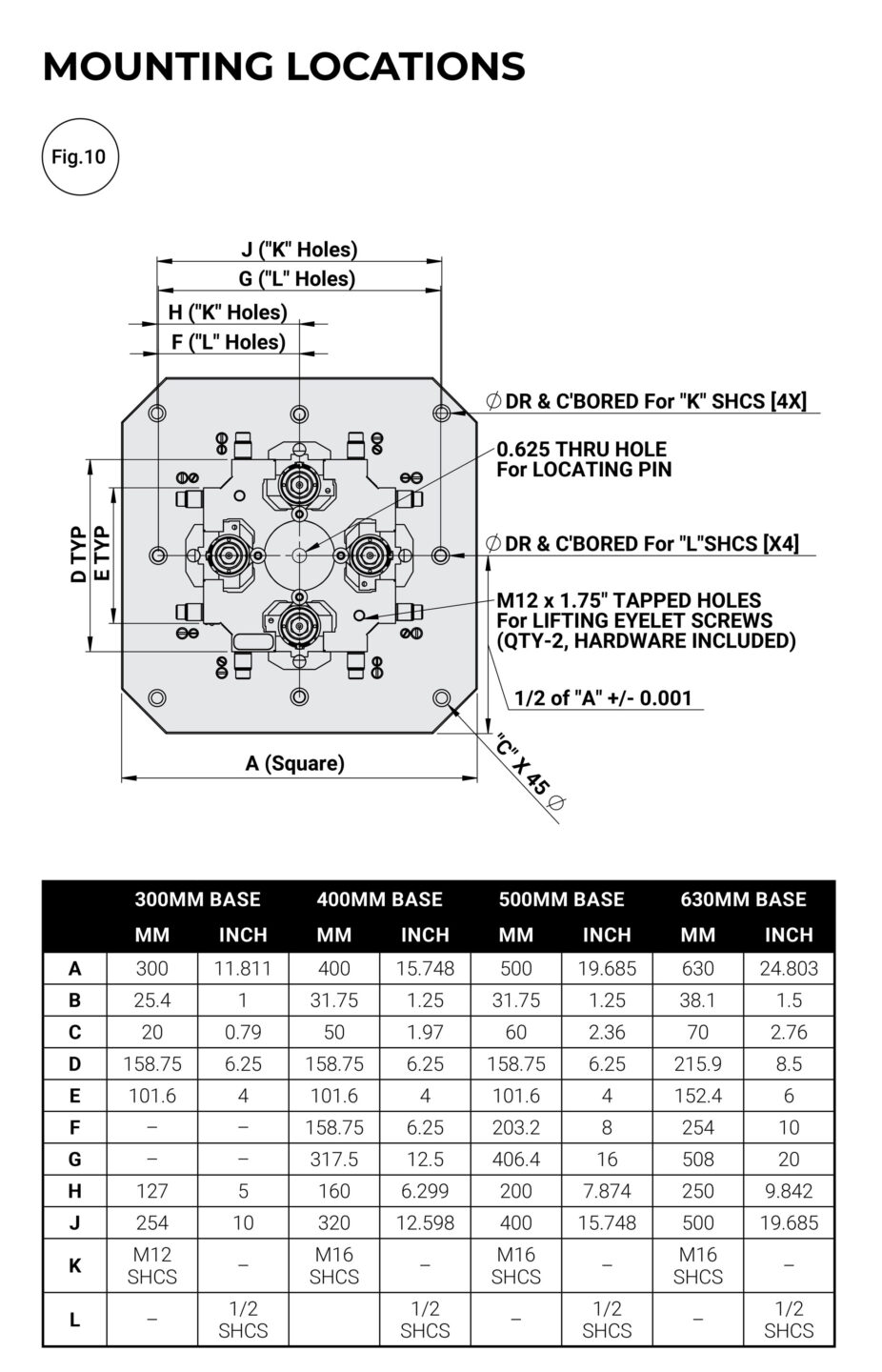

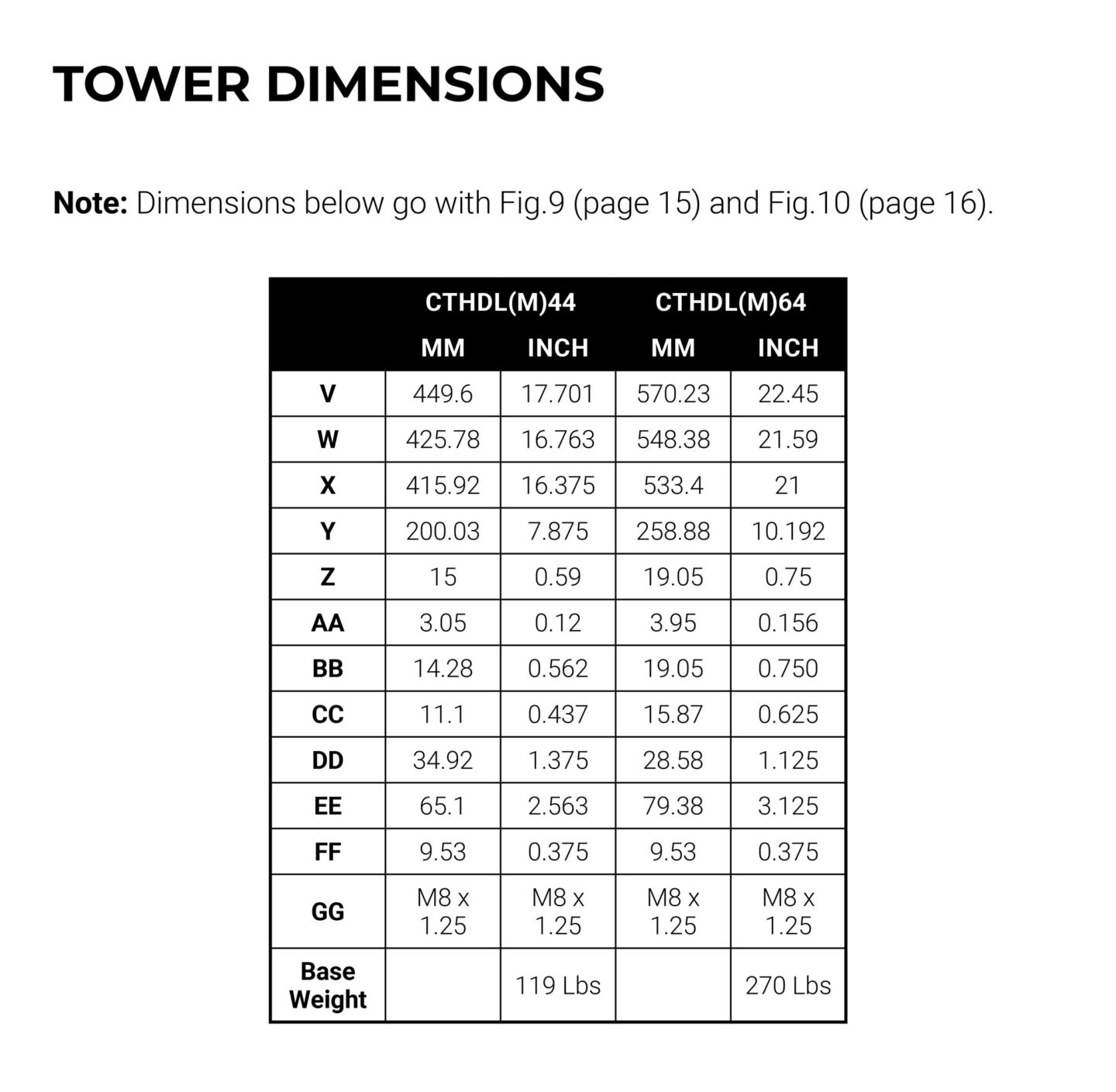

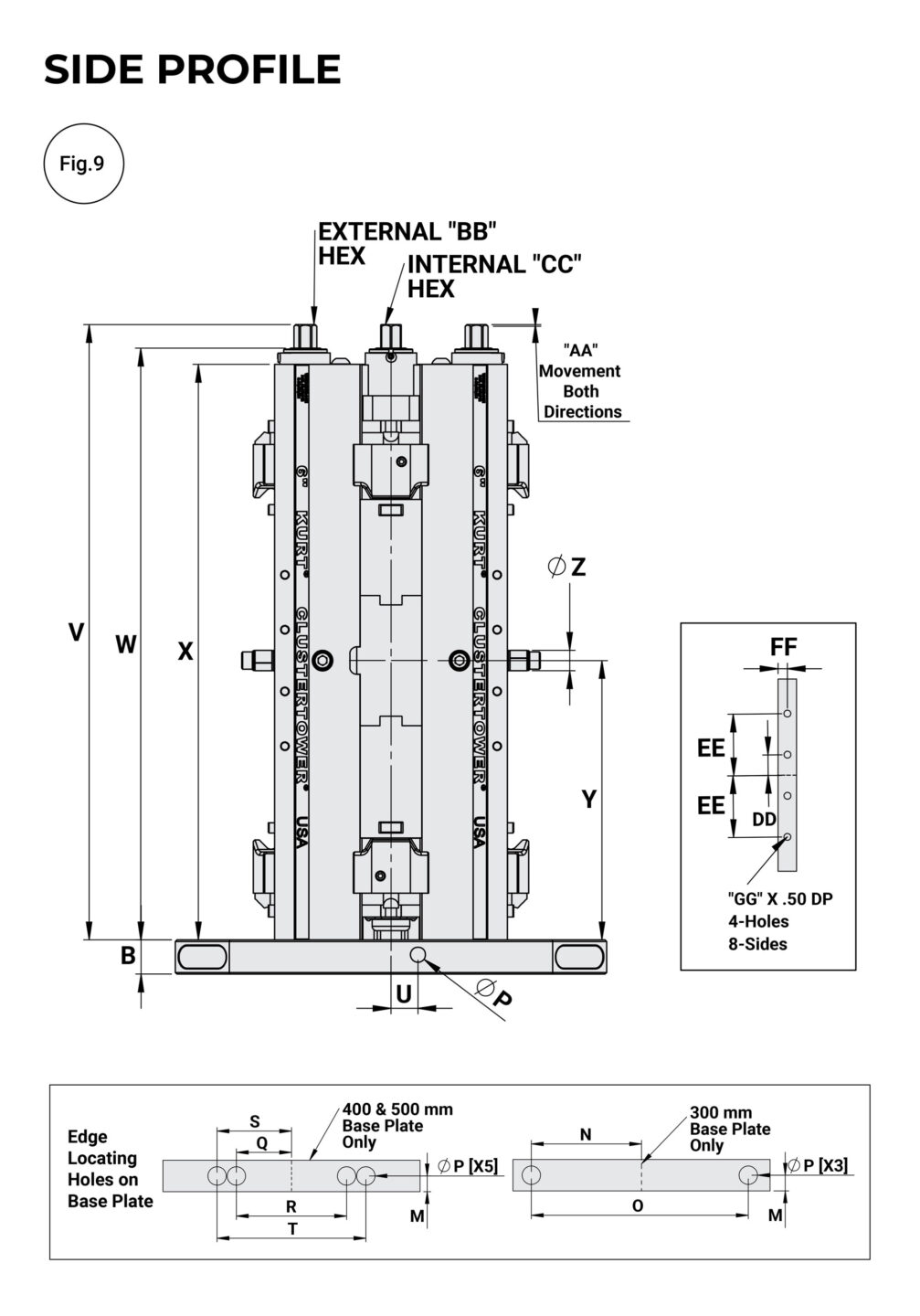

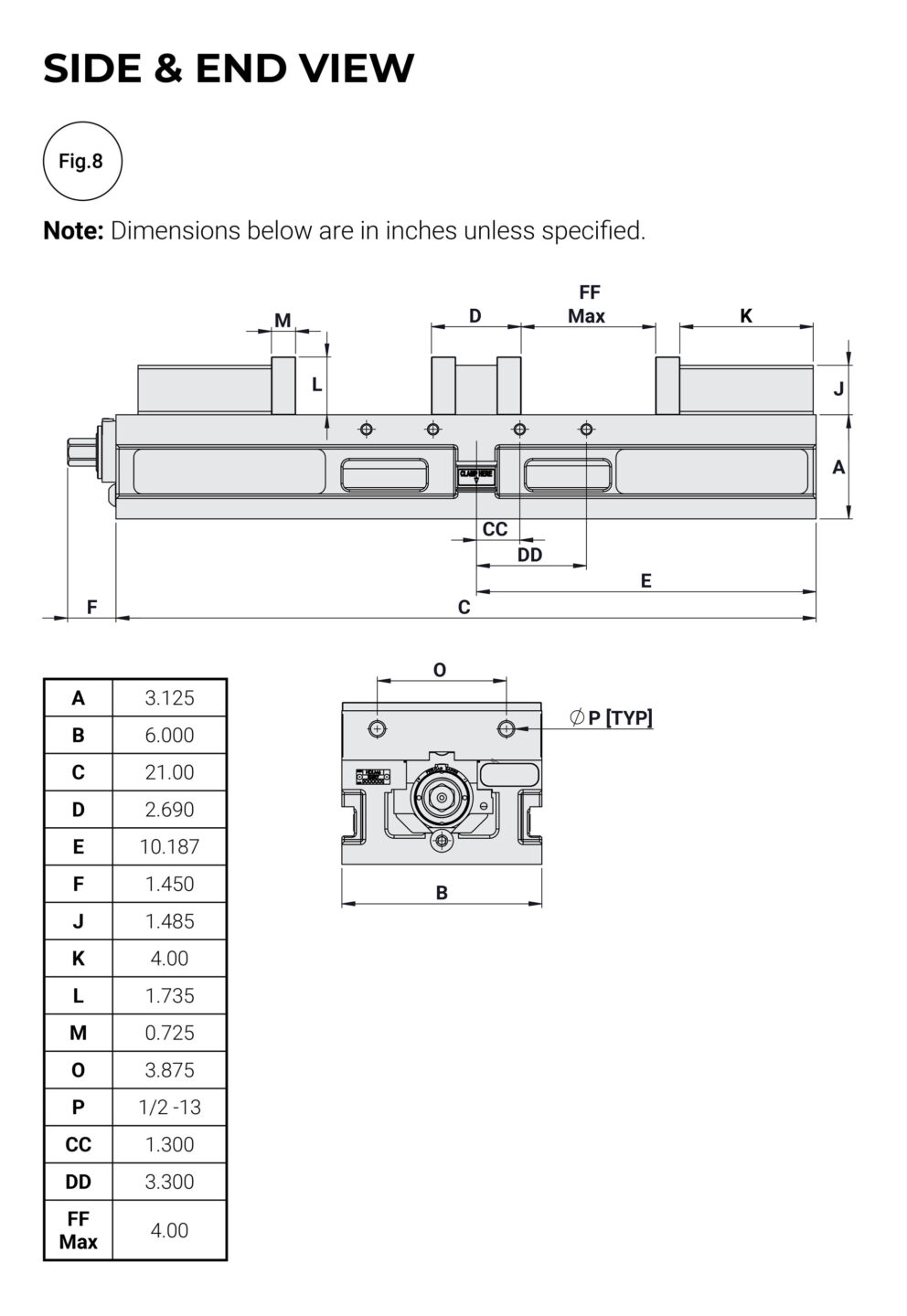

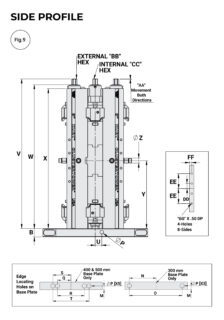

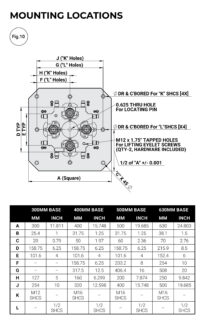

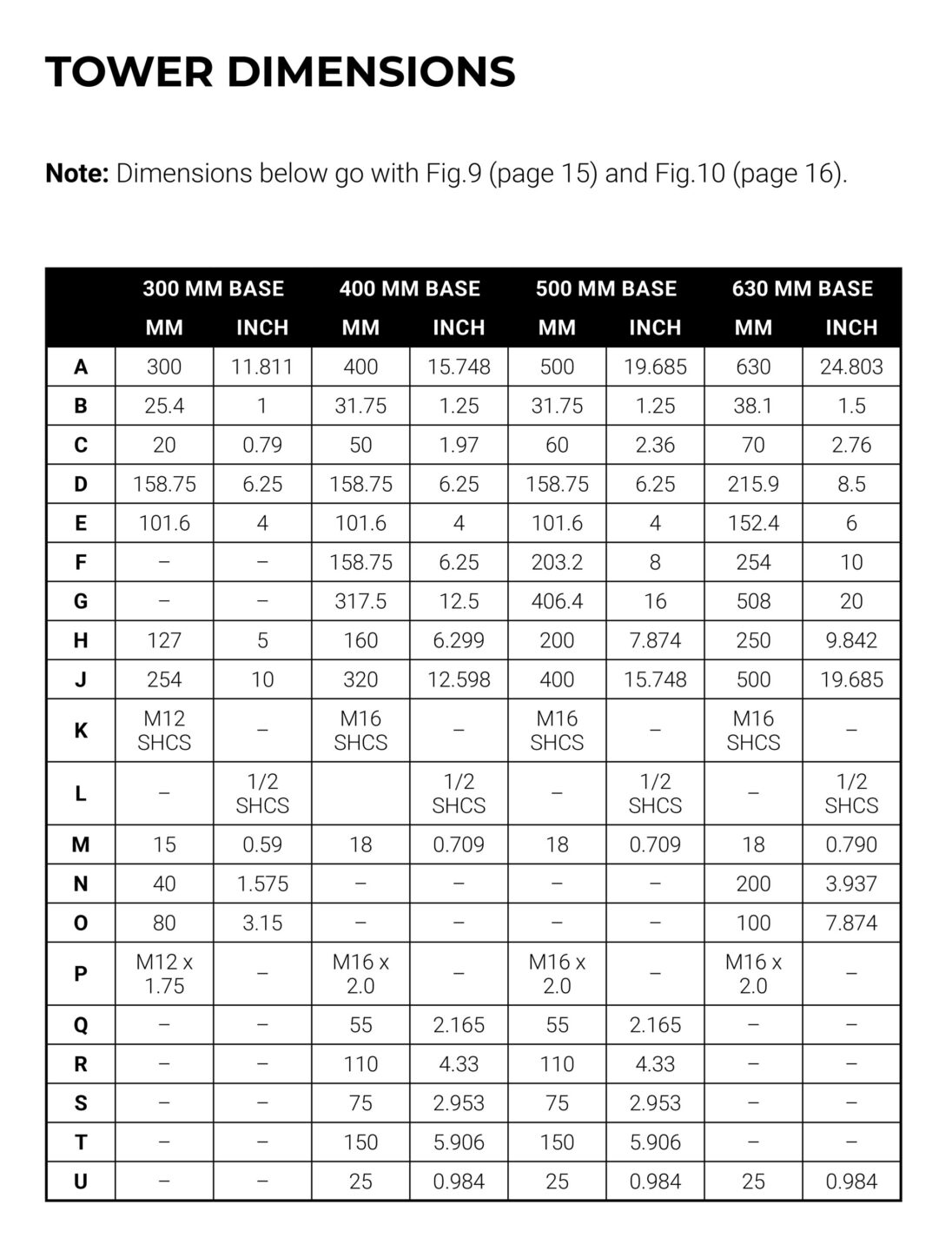

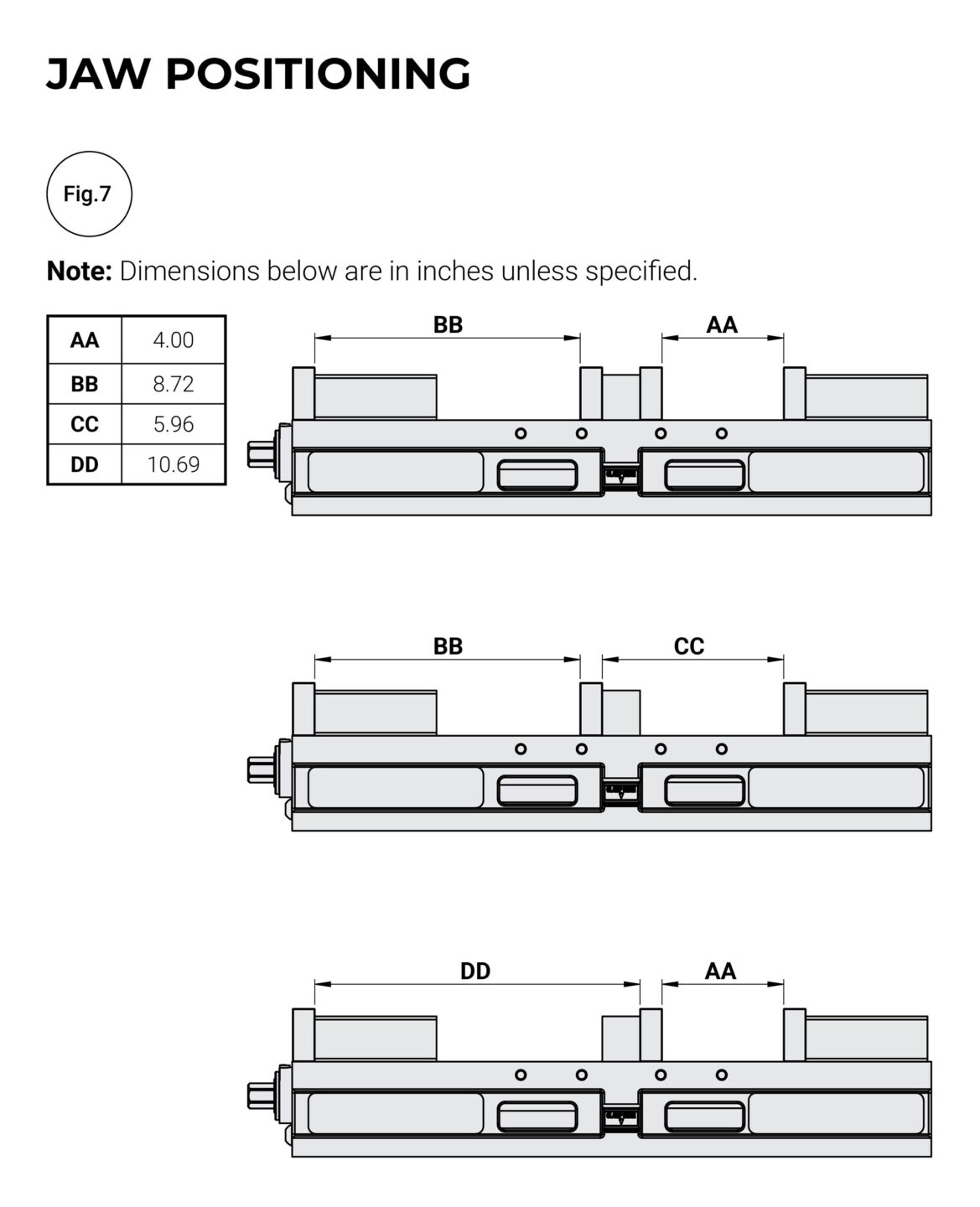

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 1,540 |
| 20 | 2,500 |
| 30 | 3,350 |
| 40 | 4,300 |
| 50 | 5,750 |
| 60 | 6,850 |
| 70 | 7,450 |
Replacement Parts
Replacement Parts
CTHDLM64 Replacement PartsReviews
