Kurt Tower w/ 500 mm Base, w/ Cast Jaws, 4″ – CTHDLM445C
Part No. CTHDLM445C
$9,386.00
Tower w/ 500 mm Base, w/ Cast Jaws, 4″

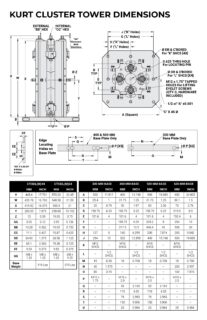

Dimensional Data
Dimensional Data
| Inch | MM | |
| A | 19.685 | 500.000 |
| B | 1.250 | 31.750 |
| C | 2.360 | 60.000 |
| D | 6.250 | 158.750 |
| E | 4.000 | 101.600 |
| F | 8.000 | 203.200 |
| G | 16.000 | 406.400 |
| H | 7.874 | 200.000 |
| J | 15.748 | 400.000 |
| K | 5/8 SHCS | M16 SHCS |
| L | 1/2 SHCS | M12 SHCS |
| M | 0.709 | 18.000 |
| P | x | M16 X 2.0 |
| Q | 2.165 | 55.000 |
| R | 4.330 | 110.000 |
| S | 2.953 | 75.000 |
| T | 5.906 | 150.000 |
| U | 0.984 | 25.000 |
| V | 17.701 | 449.600 |
| W | 18.013 | 457.530 |
| X | 16.375 | 415.920 |
| Y | 7.875 | 200.030 |
| Z | 0.590 | 15.000 |
| AA | 0.120 | 3.050 |
| BB | 0.562 | 14.28 |
| BB | EXT HEX | EXT HEX |
| CC | 0.437 | 11.100 |
| CC | INT HEX | INT HEX |
| DD | 1.375 | 34.920 |
| EE | 2.563 | 65.100 |
| FF | 0.375 | 9.530 |
| GG | x | M8 x 1.25 |
| Estimated Shipping Weight of Vise Body Only | Contact Factory | Contact Factory |
