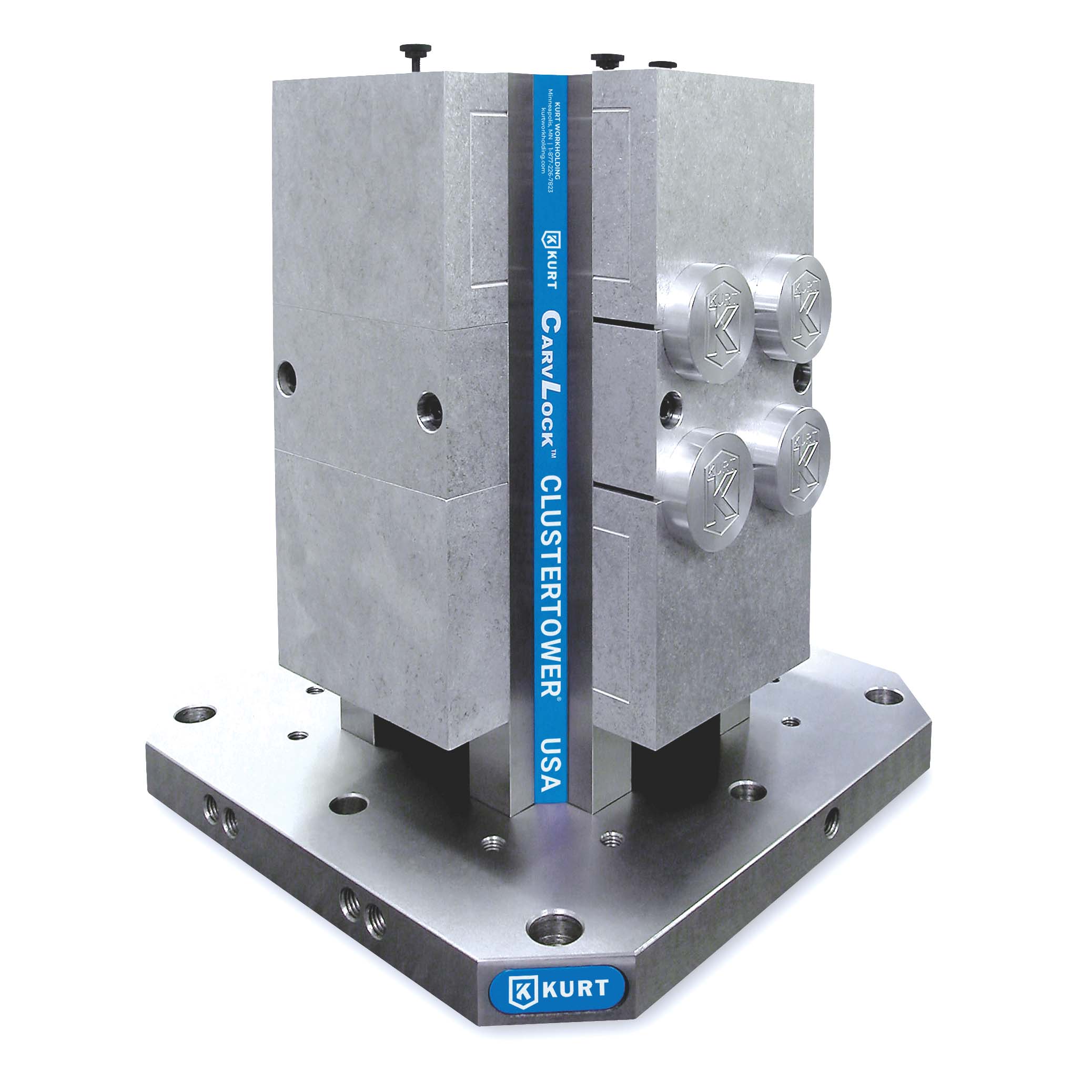

Kurt Tower w/ Cast Jaws, 630 mm Base, 6″ – CTHDM646C
Part No. CTHDM646C
$12,762.00
Tower w/ Cast Jaws, 630 mm Base, 6″

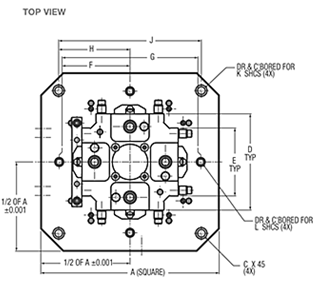

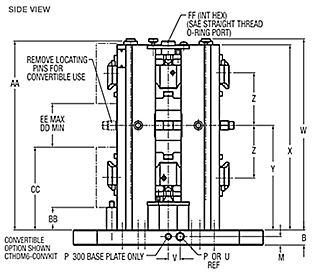

Dimensional Data
Dimensional Data
| Inch | MM | |
| A | 24.803 | 630.00 |
| B | 1.500 | 38.10 |
| C | 2.760 | 70.10 |
| D | 8.500 | 215.90 |
| E | 6.000 | 152.40 |
| F | 10.000 | 254.00 |
| G | 20.000 | 508.00 |
| H | 9.843 | 250.00 |
| J | 19.685 | 500.00 |
| K | M16 | M16 |
| L | M12 | M12 |
| M | 0.709 | 18.00 |
| N | 3.937 | 100.00 |
| O | 7.874 | 200.00 |
| P | M16x2.0 | M16x2.0 |
| V | 0.984 | 25.00 |
| W | 15.875 | 403.23 |
| X | 15.375 | 390.52 |
| Y | 8.688 | 220.68 |
| Z | 4.375 | 111.13 |
| AA | 15.688 | 398.48 |
| BB | 1.875 | 47.625 |
| CC | 6.875 | 174.625 |
| DD | 3.250 | 82.55 |
| EE | 3.625 | 92.08 |
| FF | 0.625 | 15.875 |
| FF | INT. HEX | INT. HEX |
| Approx. Ship weight w/ jaw sets | 528 Lbs | 239.5 Kgs |
