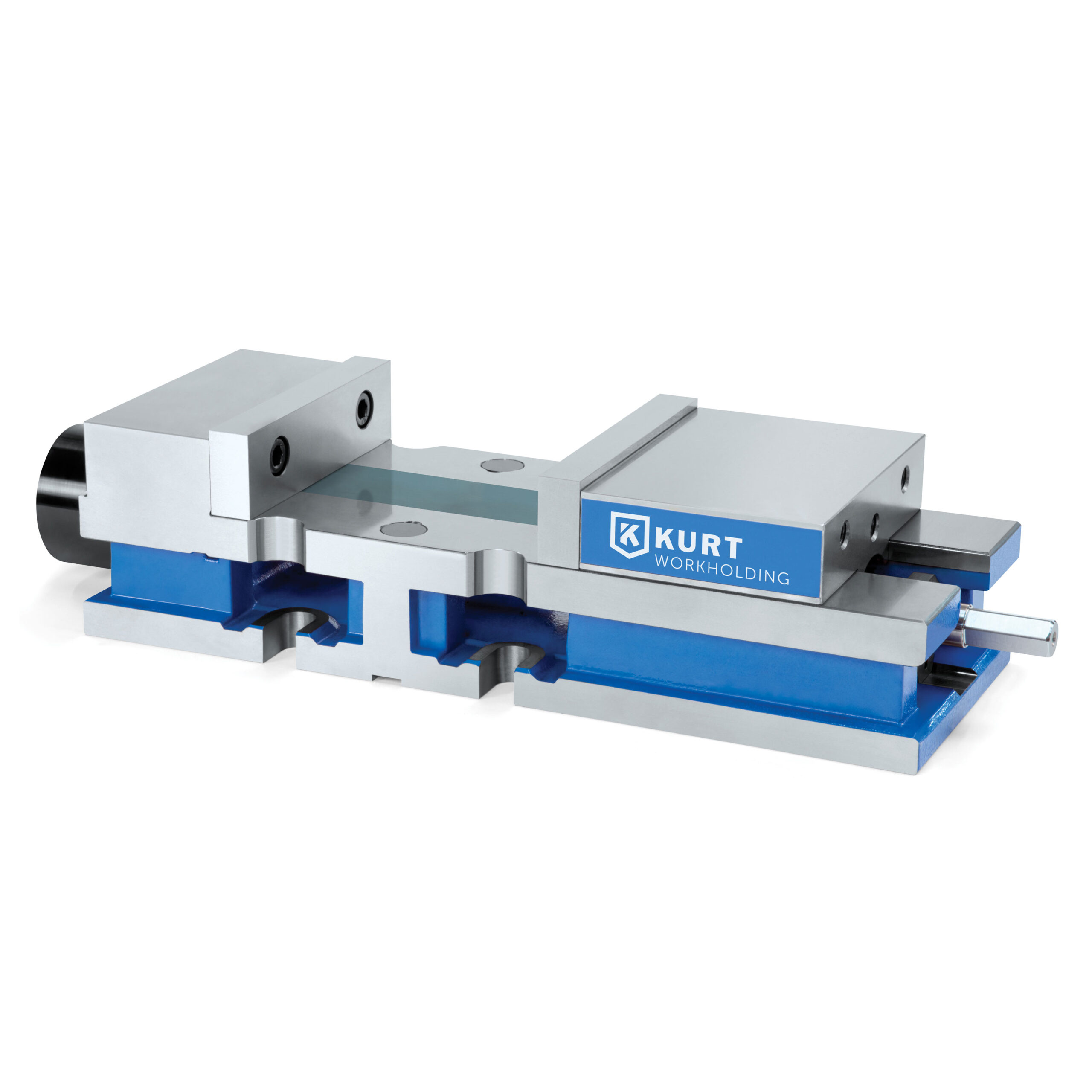

Kurt VersatileLock 8″ Hydraulic Vise – 3800H
Part No. 3800H
$3,631.00
Hydraulic VersatileLock 8″ Vise. The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads.
Description
Description
The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces stationary jaw deflection by at least 80%. The one-piece vise body and stationary jaw provide greater strength while reducing weight. The hydraulic functionality allows the vise to open and close quickly and easily.
3800H VersatileLock® Vises Features
- Full 10″ opening
- Can be mounted on either side
- Matched stationary jaw to keyway including body height ±0.001″
- 0.0005″ clamping repeatability
- All hydraulic units feature a 1/4″ vise stroke
- Est. Shipping Wt. 155lbs.
- Sine key or fixture key compatible
Mounting Instructions
Resources
Resources
Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 600 |
| 20 | 1,000 |
| 30 | 1,600 |
| 40 | 2,000 |
| 50 | 2,600 |
| 60 | 3,450 |
| 70 | 4,050 |
| 80 | 5,100 |
| 90 | 6,150 |
| 100 | 6,550 |
| Hydraulic PSI | Force in lbs. |
| 500 | 1,500 |
| 1,000 | 3,000 |
| 1,500 | 4,500 |
| 2,000 | 6,000 |
| 2,500 | 7,500 |
| 3,000 | 9,000 |
| 3,200 | 11,000 |
